[Build Log] Sanjūni - A 3970X/3090 FTW3 Open Bench MO-RA3 Build

Main System Components:

AMD Threadripper 3970X 3.7 GHz 32-Core Processor
Motherboard: Asus ROG ZENITH II EXTREME ALPHA EATX sTRX4 Motherboard
Memory: G.Skill Trident Z Neo 256 GB (8 x 32 GB) DDR4-3200 CL16 Memory
Gigabyte AORUS NVMe Gen4 1 TB M.2-2280 NVME Solid State Drive
Corsair MP600 Force Series Gen4 1 TB M.2-2280 NVME Solid State Drive
Samsung 980 Pro 1 TB M.2-2280 NVME Solid State Drive
Western Digital Black SN850 1 TB M.2-2280 NVME Solid State Drive
Gigabyte AORUS NVMe Gen4 2 TB M.2-2280 NVME Solid State Drive
Inland Performance 2 TB M.2-2280 NVME Solid State Drive
ADATA XPG GAMMIX S70 2 TB M.2-2280 NVME Solid State Drive
Sabrent Rocket 4 TB M.2-2280 NVME Solid State Drive
ASUS Hyper M.2 X16 PCIe 4.0 X4 Expansion Card
EVGA GeForce RTX 3090 24 GB FTW3 ULTRA GAMING Video Card
PrimoChill Praxis WetBenchSX ATX Test Bench Case
Corsair AXi 1600 W 80+ Titanium Certified Fully Modular ATX Power Supply
@CableMod PRO ModMesh C-Series RMi & RMx Cable Kit (Black)

Watercooling Components:

Optimus Absolute Threadripper 3+ CPU Block - Copper Plate - Black Billet
Watercool MO-RA3 360 PRO Black
18x Noctua F12 PWM chromax.black.swap 120 mm Fan
Watercool HEATKILLER Tube 150 D5
Watercool HEATKILLER® Tube - Mounting Kit
Watercool MO-RA3 Foot POM
Watercool HEATKILLER® Tube - MO-RA3 Adapter
Watercool HEATKILLER® Tube - MultiPort Top 150
8x Darkside 4-Pin PWM Fan Sleeved 3-Way Splitter Cable, Jet Black
4x Koolance QD3 Male Quick Disconnect Compression Fitting
4x Koolance QD3 Female Quick Disconnect No-Spill Coupling
EK-Tube ZMT Matte Black 15,9/9,5mm
EK Water Blocks EK-AF Ball Valve
Aquacomputer D5 Next RGB
EKWB EK-Leak Tester

This is Part 1 of a major rebuild of my main PC. Part 1 because I am waiting for Heatkiller IV or Optimus FTW3 waterblock for the 3090 FTW. Both are potentially months away.


Q. Is it loud?
A. No, the MO-RA3 has less dense fins than an ordinary radiator. Air moves easier and I can set fans to a minimum. It is not audible over anything else in my office.

Q. Why all the different NVMe drives?
A. They were all picked up at different times for different sale prices. I am not using them for RAID, each drive has a different task, with my most important storage going to a 10 gig NAS.

Q. Why is the GPU in the second slot?
A. It is in a full Gen 4 16X slot. It will stay this way until I have a water block for the GPU. If I swap the Hyper Card and GPU, the GPU will suffocate.

Q. Why are you only water cooling the 3970X?
A. Waiting for GPU blocks that fit the build aesthetic.

Q. Can it run Crysis, Minsweeper, Task Manager, etc…
A. No.

Q. What do you do to need all of this?
A. The simple answer is… a lot. And all at the same time. I am not using 100% of it 24/7, but when I need the power, I need the power. This build evolves constantly, and the money was not spent all at once.

Things I loved about the build:

Gotta love benches – The previous iteration of this build was in the Enthoo 719. It was a fine case, but it was not long before I realized I swap hardware far too often to be tied down by tubing like this. There was a lot of hardware in the 719, packed very densely. After my experience with the Openbenchtable for my X299 build, I knew I wanted to go bench.

I considered an Openbenchtable in black, but I wanted an angled bench and a studier bench. The open bench table is flat, and since it was made to be broken down/transported easily, it is not super stable. The screws loosen over time. The Z2E Alpha is 9.68lbs alone. Add all the other components and I could easily see this not working out well over time. I remembered the Praxis Wetbench SX from a JayzTwoCents video and went after that. It was only available in white for a few weeks, but finally came back in stock in black.

Overall, I really like the Praxis WetbenchSX. It supports the board well, the angle is just right, and the matte finish refuses to show fingerprints. Amazing compared to the fingerprint magnets most matte finishes become. It has a couple of shortcomings. The metal is rather thin. I have no worries about it collapsing, but it does wiggle if you bump it. With the metal being thin, the finger wells are extremely uncomfortable. When I transport the bench fully loaded, I have about 30 seconds before my fingers feel like they are going to be ripped off. That said, I will not be moving it much now that it is complete. The motherboard standoff system is more cumbersome than it needs to be. Very long threaded thumb screws with nylon standoffs that screw in over them from the bottom, then nuts to hold the board in place. It is an awkward setup, but again, you only need to do it once, so it is at the bottom of the list. Lastly, it is very tall. It accommodates a lot of things, so this is more an observation than a con. None of these things would prevent me from purchasing it again if I had to.

A return to simplicity and modularity – While I absolutely loved the Chīsai iteration of this PC, it did not lend itself well to my upgrade/replacement workflow. I thought my Cascading Moonlight X299 bench would slow my upgrade pace down, but I found myself swapping hardware in and out of this PC and it was nerve wracking pulling the reservoir in and out or reaching around a tube to upgrade the RAM. Going with soft tubing in that build did make upgrading possible, it just was not as painless as I would like. In the future, I will save the complexity for systems I do not depend on so heavily.

Maintenance is also vastly simpler with this setup. There are lots of specific pieces of hardware when it comes to the MO-RA/Heatkiller Tube combo, so I had to get most of them directly from Watercool in Germany. While I waited, I used my 2nd MO-RA3 from the X299 bench temporarily to get this system running so I could get work done. It is set up with the same Koolance quick-disconnect system, so I was able to connect right in and go. I have draining and flushing the MO-Ras down to a science now, so that takes less than an hour. When it comes to dust, I learned from the other bench setup I have that it does not collect much. The fans are on the MO-RA3, and the radiator fins are not nearly as dense as traditional radiators. This keeps dust to a more than manageable minimum.

Still an absolute beast – Performance wise, not much has changed on the CPU end. I did switch from an EK Velocity block to an Optimus Absolute Threadripper 3+ CPU Block. In terms of temps, if I lock down clocks, I see an average of 8C improvement. I do not do static OC though, opting to let PBO do its thing. This means I do not see a change in temps this way, instead I have observed increased frequency in both single and all-core workloads since the extra headroom is there for the algorithm to take.


The urgency of the build – Normally, I like to plan my builds and transition into them. Especially when it comes to my main system. The previous iteration of this system was up and running for almost 2 months before I switched to it completely. The thing that kicked off the build in the first place is my Z2E non-Alpha deciding various PCI-e devices were no longer present. My 2nd GPU would drop out, or an NVMe at random, and the 10 gig ethernet. After various troubleshooting methods (and when the NVMes started dropping out), I opted to replace the motherboard with a Z2E Alpha we had as backup in the office. Luckily, I have plenty of other powerful systems to choose from, so there was not much I could not do in the week or so I wanted for the other parts to show up.

Finding a GPU in stock – This was annoying, as you are all very aware by now. I refused to resort to scalpers. Back in Sept I tried—and failed—to get a 3090 FTW direct from EVGA. Did not think I would beat the bots, but hey… I tried. I signed up for notifications, then in October, EVGA announced their queue system. They automatically converted alerts to a place in the queue, so fast forward to Dec 22, 2020 and I got an email that it was ready. I had 8 whole hours to claim it. What a great system.

The 6900 XT was a different story. I was at Microcenter and heard some commotion about an unexpected delivery. I wandered over to see what all the fuss was about, and walked away with a 6900 XT. Between the two, the 3090 ended up being better for my workflow, so the 6900 XT will be used in a more Linux focused build.

GPU water block scarcity – Just like GPUs themselves, water blocks seem to be a mixed bag in terms of availability. Both EK and Optimus make FTW3 blocks, but they have been trickling out. I know Alphacool and Bykski have blocks out, but they just do not fit the vision. Alphacool diverged heavily from their minimalistic, utilitarian design and wholly embraced RGB. That and the maze of O-rings was not for me. At the time of writing, Watercool’s Heatkiller FTW3 continues to get pushed back. I think it will be what I end up waiting for, though Optimus is a strong contender considering they are releasing weekly batches now. There is a lot more acrylic than I prefer, but the massive, black backplate should bring the look together the way I like.


Loving the build so far. It was noticeably more difficult to get parts this time around, but it is understandable. Hope it will be a while before 5000 series TR. Looking forward to pushing the 3090 and 6900XT once there are blocks!



Part II: Optimus Absolute 3090 FTW Waterblock

I started the Sanjūni build knowing I would need to run the GPU on air for an uncertain amount of time. The only path to obtaining a GPU without paying scalper prices or enlisting bot mercenaries, was patience. EVGA came through with the 3090 FTW3 thanks to their queue system. At the time, there were only plans for blocks. Soon after, EK “released” their block, but it took forever to come to market after being announced. Even if I wasn’t holding out for Watercool or Optimus, that first batch sold out immediately. At this point, Optimus’ backlog was infamous, so I kept an eye on Watercool a bit more. It was promising at first, then silence. December came and went. January was even more silent, and by February, there was at least news via twitter that Optimus would begin making batches available “weekly.” It did not inspire confidence that each tweet was filled with people wanting to know where their orders from November were, but being on a list was better than nothing.

Sanjūni was already up and running in its CPU-only form, so I signed up and started waiting (and waiting). Fast-forward just shy of the two-month mark and SHIPPED! It was about double their longest estimate, but this was about what I was anticipating. From the perspective (and experience) of the r/watercooling server, I got my order quickly. Optimus is both very small and very new. Communication is something I hope they improve quickly. Given the strain on the entire water-cooling market with GPU blocks, I do not think saying 4-8 weeks would have scared anyone off. It certainly would cut down on frustrating tweets about missed deadlines and ignored emails. A lot of new companies do not want to be seen as small operations but, being more forthcoming about capacity and expectations would have gone a long way here.

Ok, the wait was long, but was it worth it? Absolutely! Was it worth the premium? I would say so. The design approach, the material choice, and the overall excessive nature of the block shows how uncompromising Optimus’ vision is. It is very much “we’re going to do this crazy thing, and if you want to come along for the ride, let’s go!” The acrylic is extremely thick and nicely finished. The clarity is glass-like. The slab of copper is substantial, and the fin array is large and dense. I opted for the XL backlate. It comes with a full-length Fujipoly 3mm pad. It is pre-cut and applied. The rest of the strips are pre-cut but, need to be applied manually. At some point, I would like for them to come pre-applied like Corsairs’ offerings. The price lends itself to that experience, but I do understand they would need more tooling/time and are not at that stage yet. With that said, the film on these pads was easy to remove. More so than either of my EK or Watercool blocks. Overall, I am please with experience. You really understand the mission once you get their blocks in-hand. I also swapped over to the Nickel Threadripper block to match.

In terms of performance, there was a nice jump in both peak and sustained frequencies. I used TimeSpy Extreme to help visualize this. On air, I was getting peak clocks of 2085 with average clocks being 1875. Average core temp was 59C @ 100% fans speed. On water, this improved to 2235 peak with average clocks at 2040. Average core temp was 35C. Fans on the MO-RA3 were kept at 700 RPMs which is not audible over anything else in the room. For memory, I installed NiceHash at the request of a friend, and let it run for an hour on air right before I broke the system down to install the water block. The junction temp went from at worst being peaking to 95C to never going over 54C once I had it installed.

In addition to the GPU block, I’ve also swapped my OS drive to a Gammix S70 2TB. It is a FAST and consistent performer.


This is the system I envisioned when I started this build. Raw power at whisper. I am content for a little while.


This issue ended up being data corruption. Something I resolved thanks to the magic of ZFS.

I went w/ a QNAP that uses the QuTS Hero version of their OS that adds ZFS support. I probably could have built something, but time was of the essence and I wanted to be as hands off as possible.

Most of my planning around this build was “don’t touch it for a few years, but if you have to… make it easy.” The tubing and coolant were chosen for their reliability characteristics. Koolance formulated the coolant to last up to 3 years. 1 year in and that’s looking to be true.

I went with quick disconnects to aid in this mission as well. Pulling the graphics card out to access the drives was a 10 minute affair.

I swapped out my OS drive so that I could do a fresh install of 11. I played around with it a bit via upgrade so that I could get an idea of how I wanted to set it up.

My biggest grievances with 11 were the task bar and context menus. The stock 11 setup made my workflow so ridiculously inefficient. I messed around with the preview months back and thought “surely they’re not going to leave this like this.” Well… they did.

The major workflow inhibitors for me were:

  1. The simplification of the taskbar - Combining taskbar elements with no way to see what you’re actually working on at a glance was a disaster. Removing the ability to right click and get task manager and window management settings was far more detrimental to my workflow than I could have imagined. Condensing elements in the tray like audio and connectivity options created extra steps.
    I’m also not someone who hides tray items, so having to go into settings and display them 1 by 1 was ridiculous.

  2. The simplification and truncation of the context menu - Gone again were words. Replaced by small, thin icons and then a few things Microsoft deemed important, hiding MANY common tasks. I don’t know anyone who both uses the context menu AND wants simplicity. I know many people who go their whole lives not knowing that menu exists. Why it needed to be simplified is beyond me.

The project ExplorerPatcher by Valinet brought back everything I needed. It is truly amazing, but also makes it VERY clear that 11 really is largely a skin slapped on top of 10.

I have never donated to a project faster lol.

After that rant, you may wonder why I bothered with 11 at all when 10 will be around until 2025. What could possibly make having to do all of that worth it?

  1. Multi-monitor management - 11 bring lots of great improvements to window management. I still use DisplayFusion for multi-monitor taskbars, but it was very well updated when I gave it a try.
    There is also a nifty new window slicer. This makes managing more than 2 windows quick w/o the need for third (or even first) party utilities. Snapping is also great with portrait monitors. No more side by side default. It’s smart enough to stack windows on top of each other.

  2. Window resiliency - I do two things quite often. RDPing into this PC and using my 4-port KVM. As you can imagine, both of those things are hell on window management and have been for years. 11’s ability to curb the pain of window jumbling in those two events has made it more than worth dealing with the pain points listed above.

  3. This WAS going to be the new snipping tool but the version that came with the upgrade is gone. Snip and Sketch is back. And as awful as I remembered it. I’m not sure if I accidentally got a preview build when I did the upgrade, but it’s gone again. Going to boot off of my old drive later via external enclosure to see if I can port that over to my fresh install. Turns out the new snipping tool is just in the Microsoft Store.

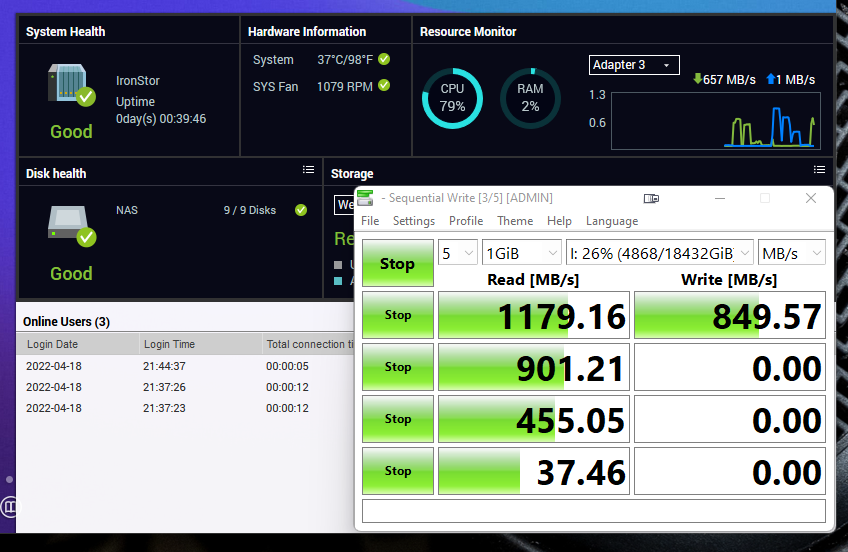

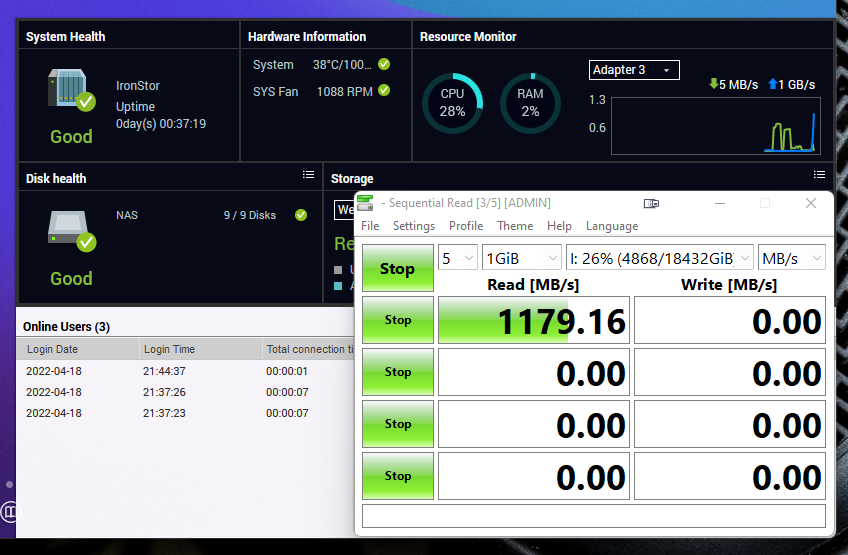

Watching ZFS work is always so cool.
